Tank Anodes

Explore our standard range of Tank Anodes in Aluminium and Zinc. Contact us for more details or custom requests.

Click on the anode type to view the drawing and full specifications.

— Aluminium
Type Material Net Weight (kg) Gross Weight (kg) Insert Length (mm) Anode Length (mm)

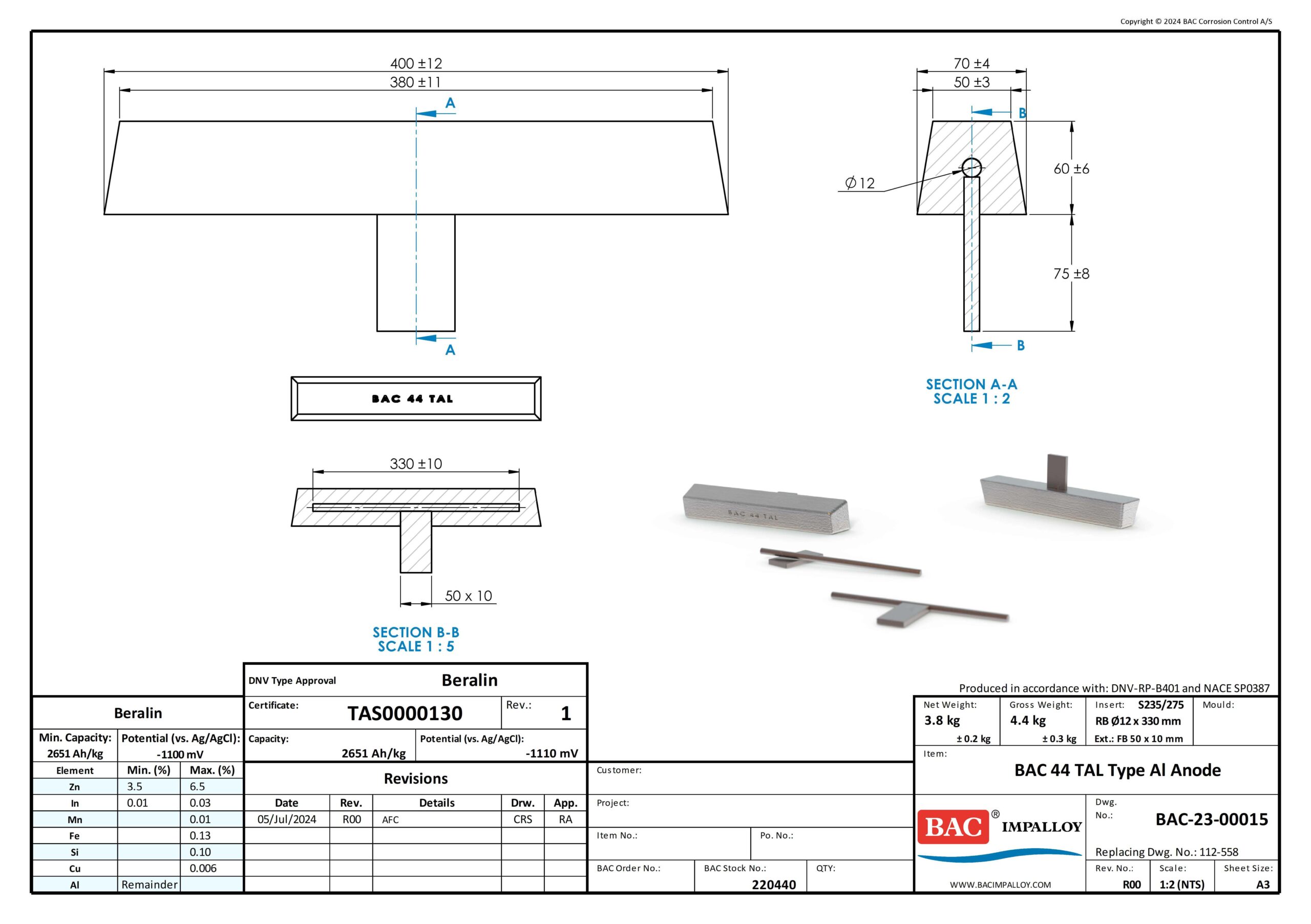

BAC 44 TAL Aluminium 3.8 4.4 330 390

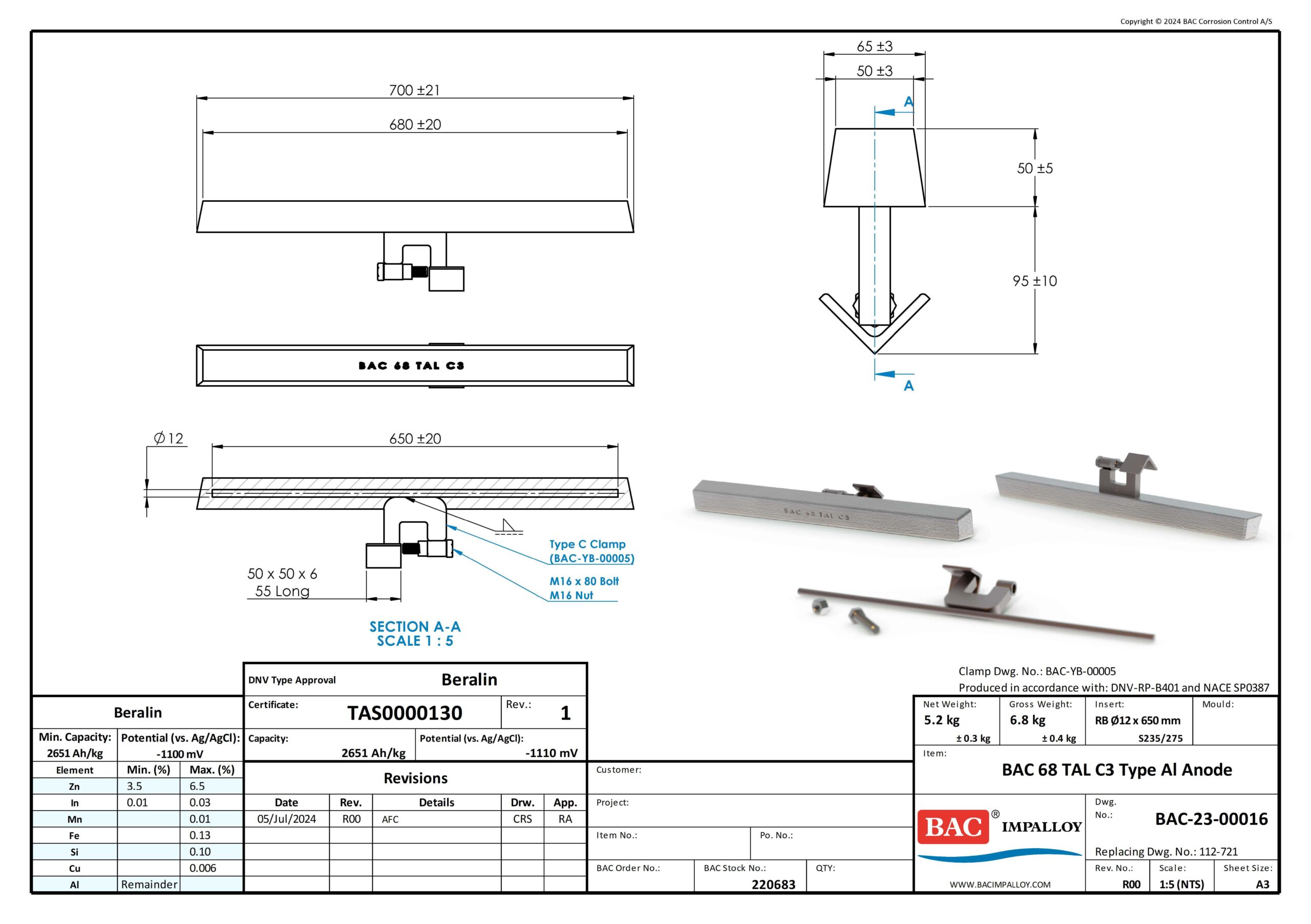

BAC 68 TAL C3 Aluminium 5.2 6.8 650 690

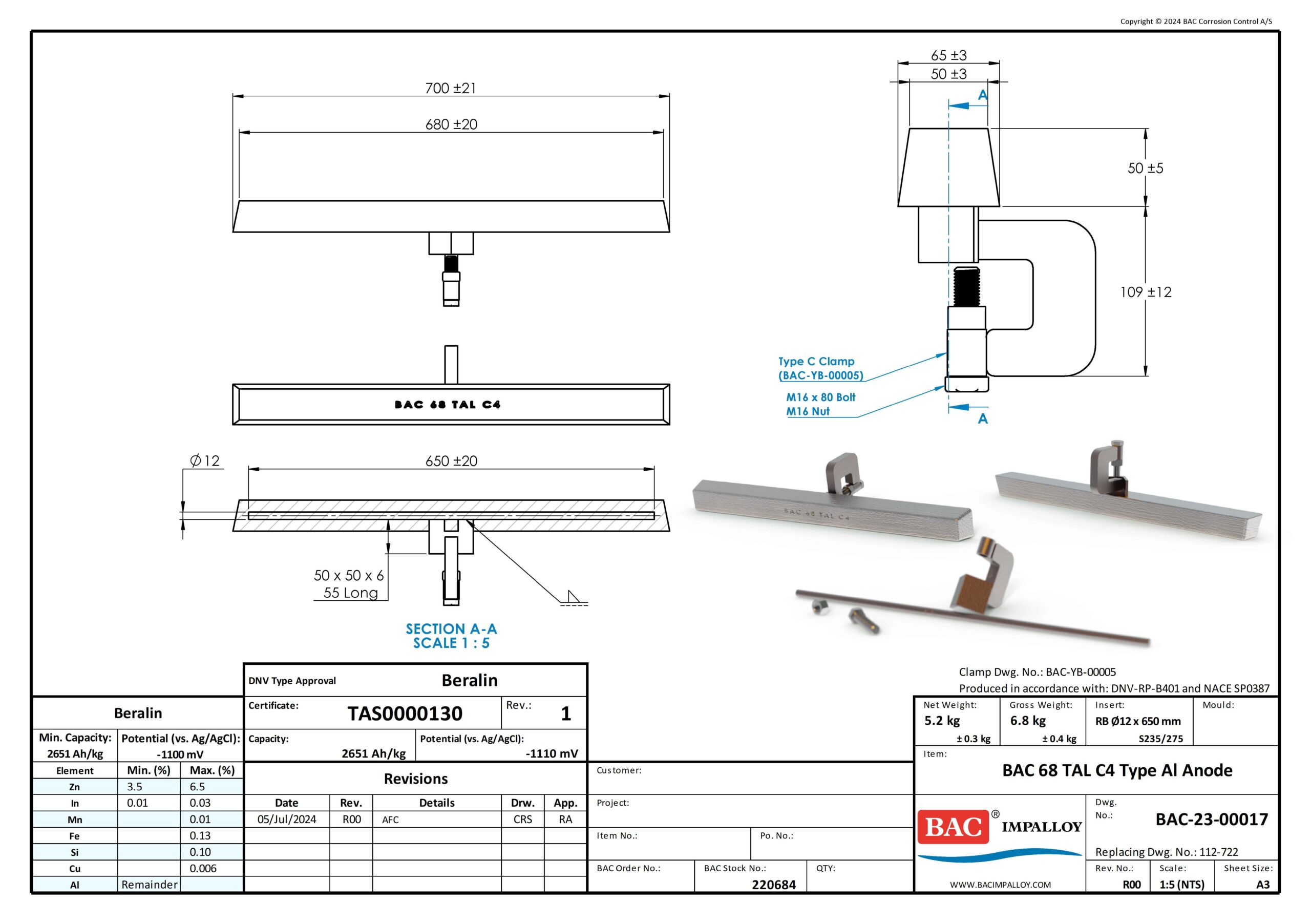

BAC 68 TAL C4 Aluminium 5.2 6.8 650 690

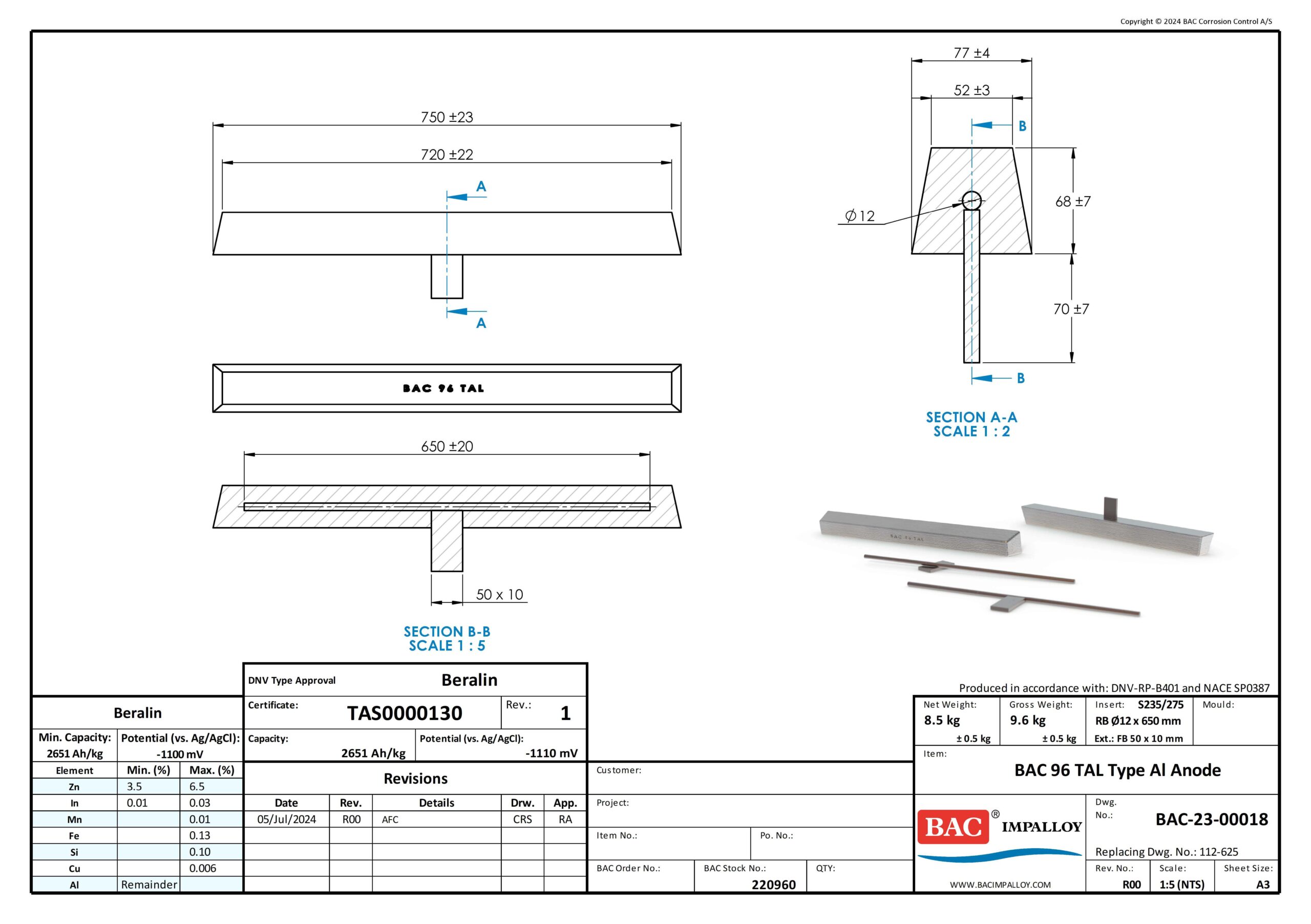

BAC 96 TAL Aluminium 8.5 9.6 650 735
BAC 100 TAL Aluminium 8.7 10 1415 187.5

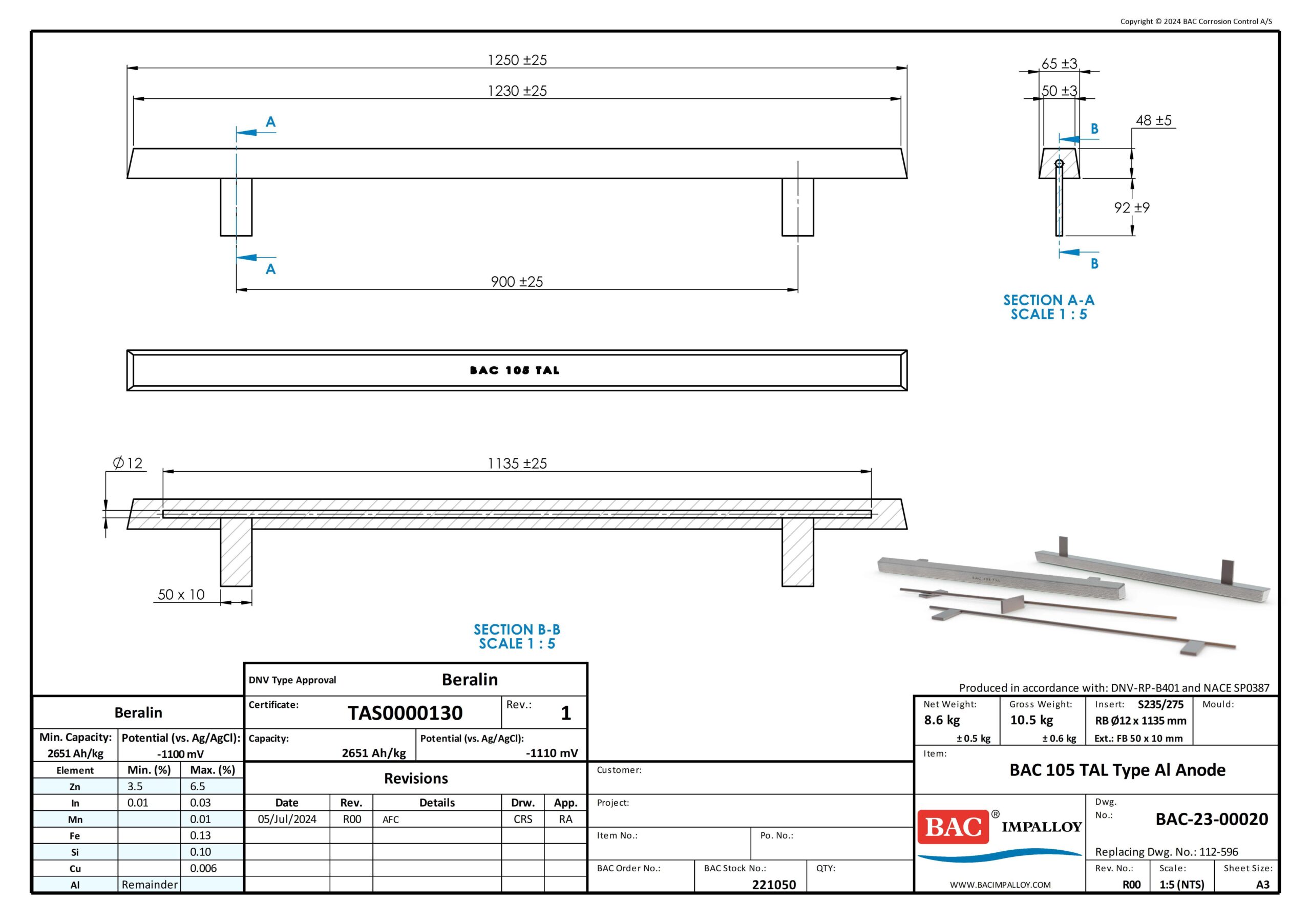

BAC 105 TAL Aluminium 8.6 10.5 1135 186.5

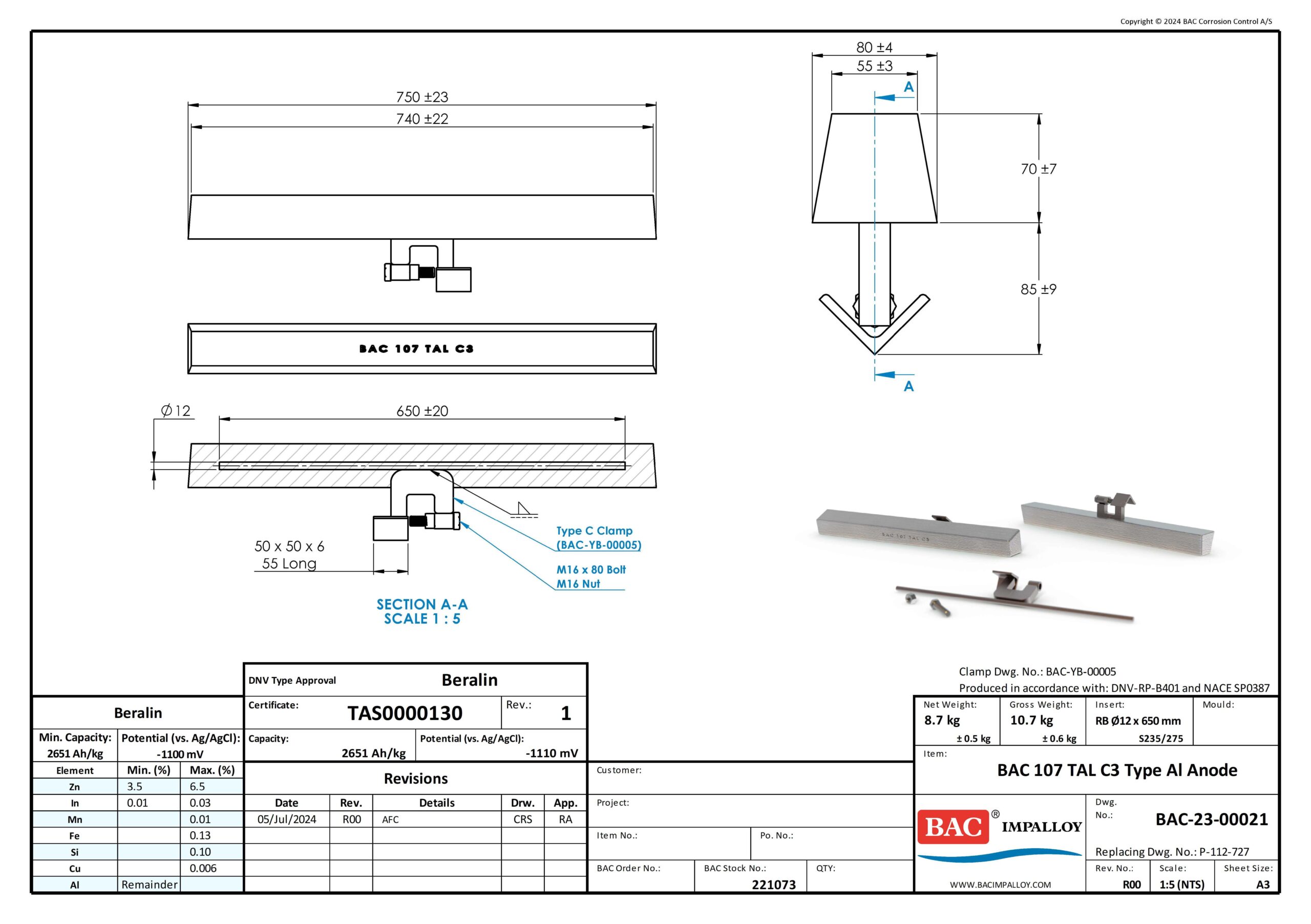

BAC 107 TAL C3 Aluminium 8.7 10.7 650 745

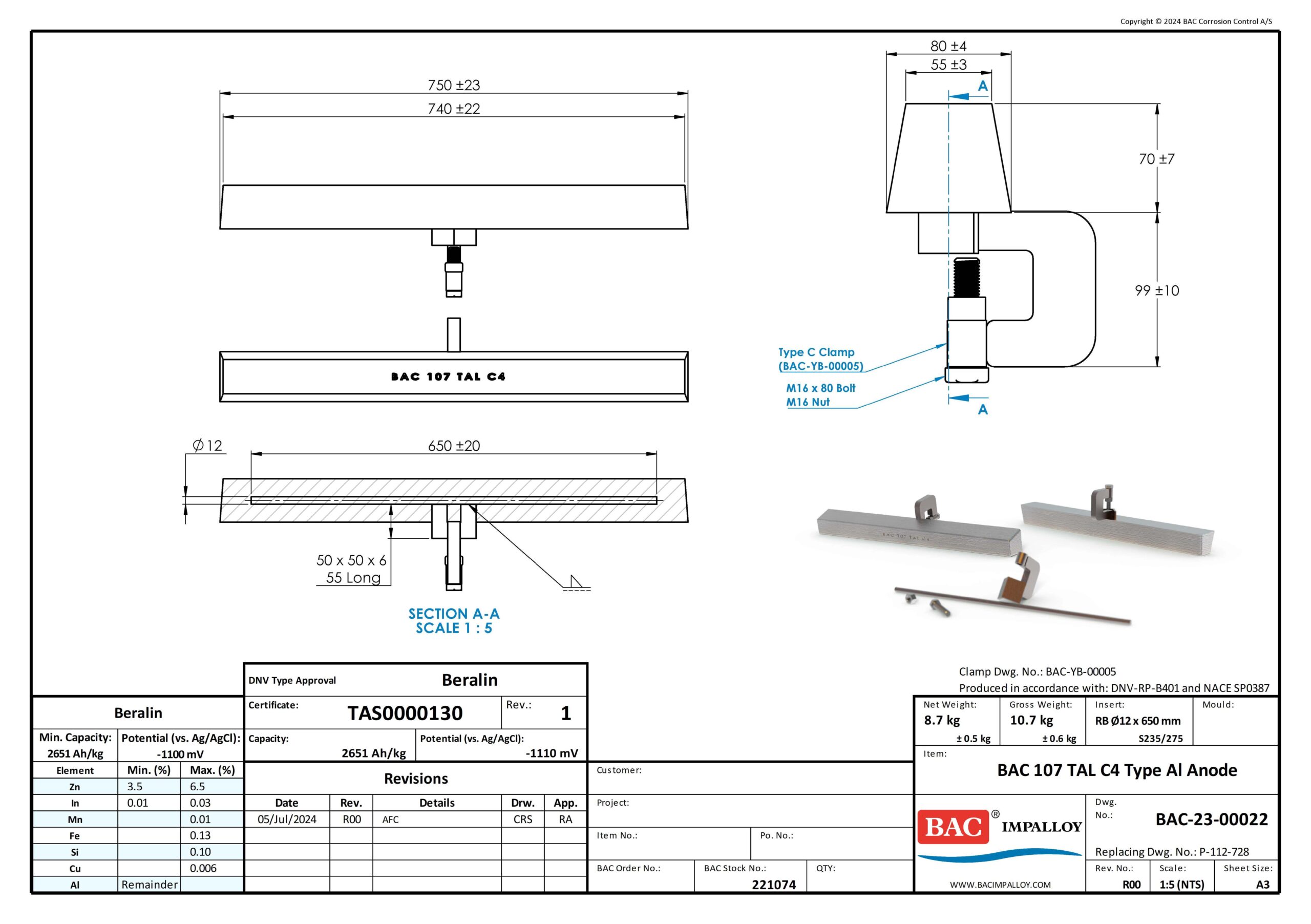

BAC 107 TAL C4 Aluminium 8.7 10.7 650 745

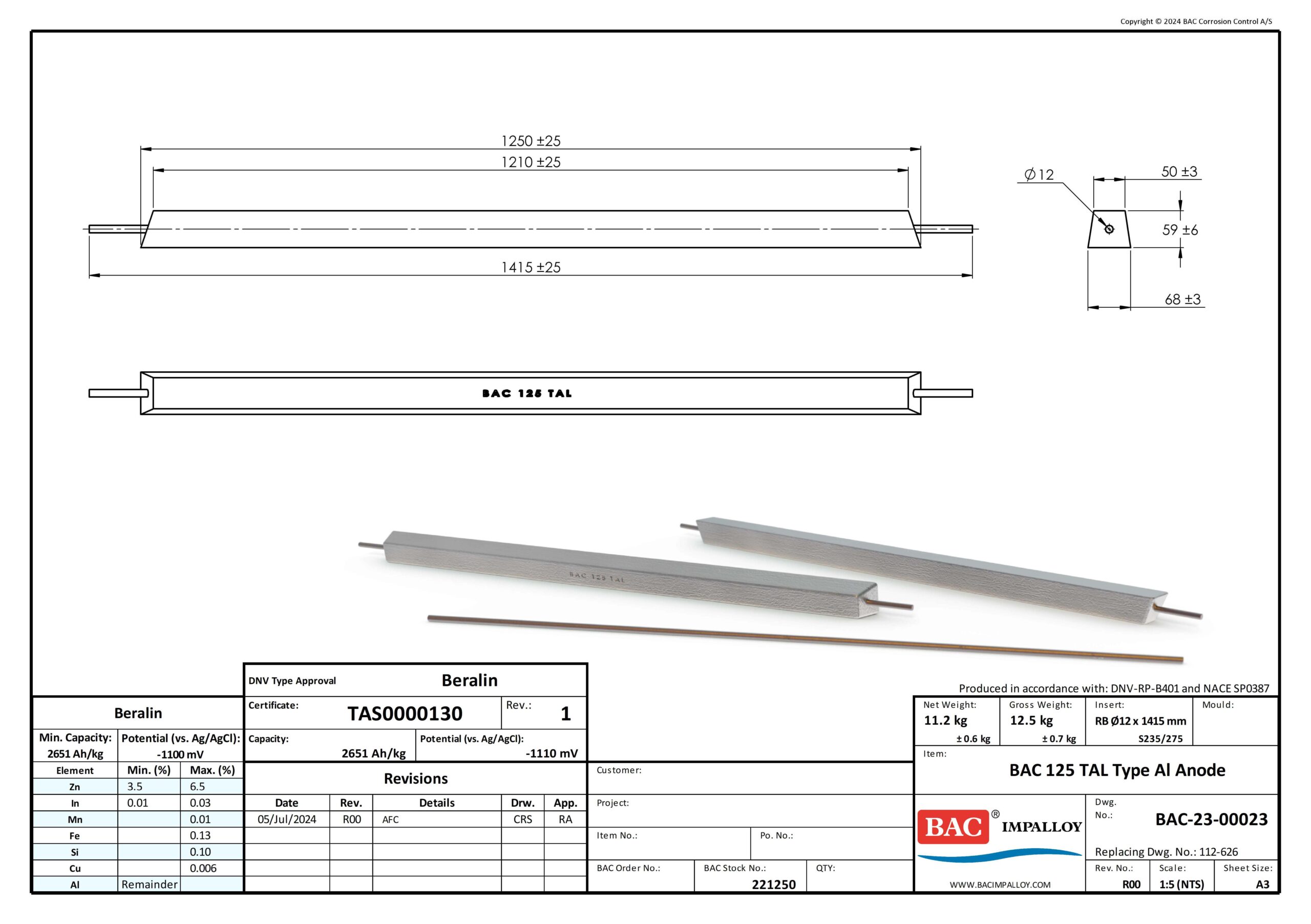

BAC 125 TAL Aluminium 11.2 12.5 1415 185.5

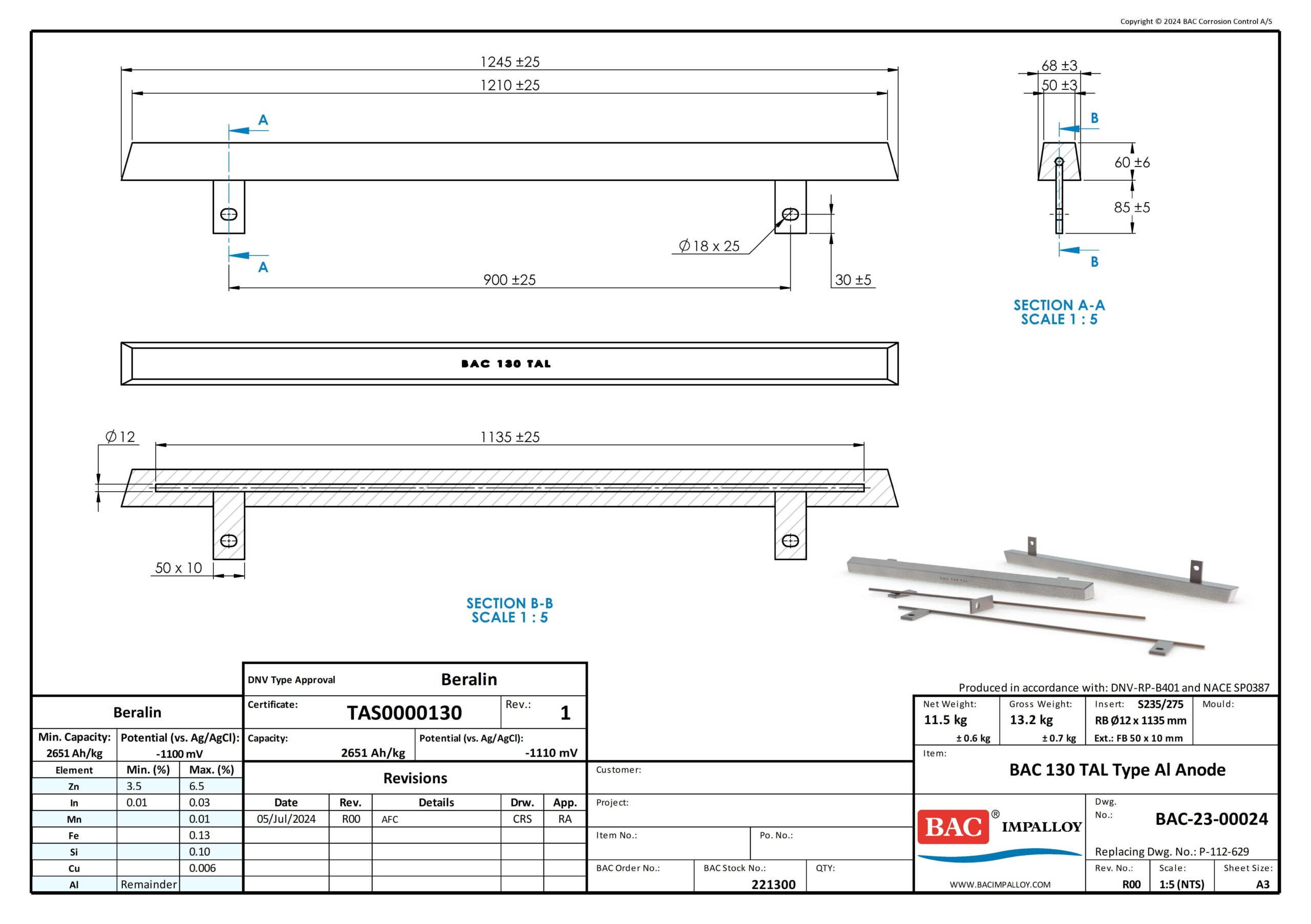

BAC 130 TAL Aluminium 11.5 13.2 1135 183

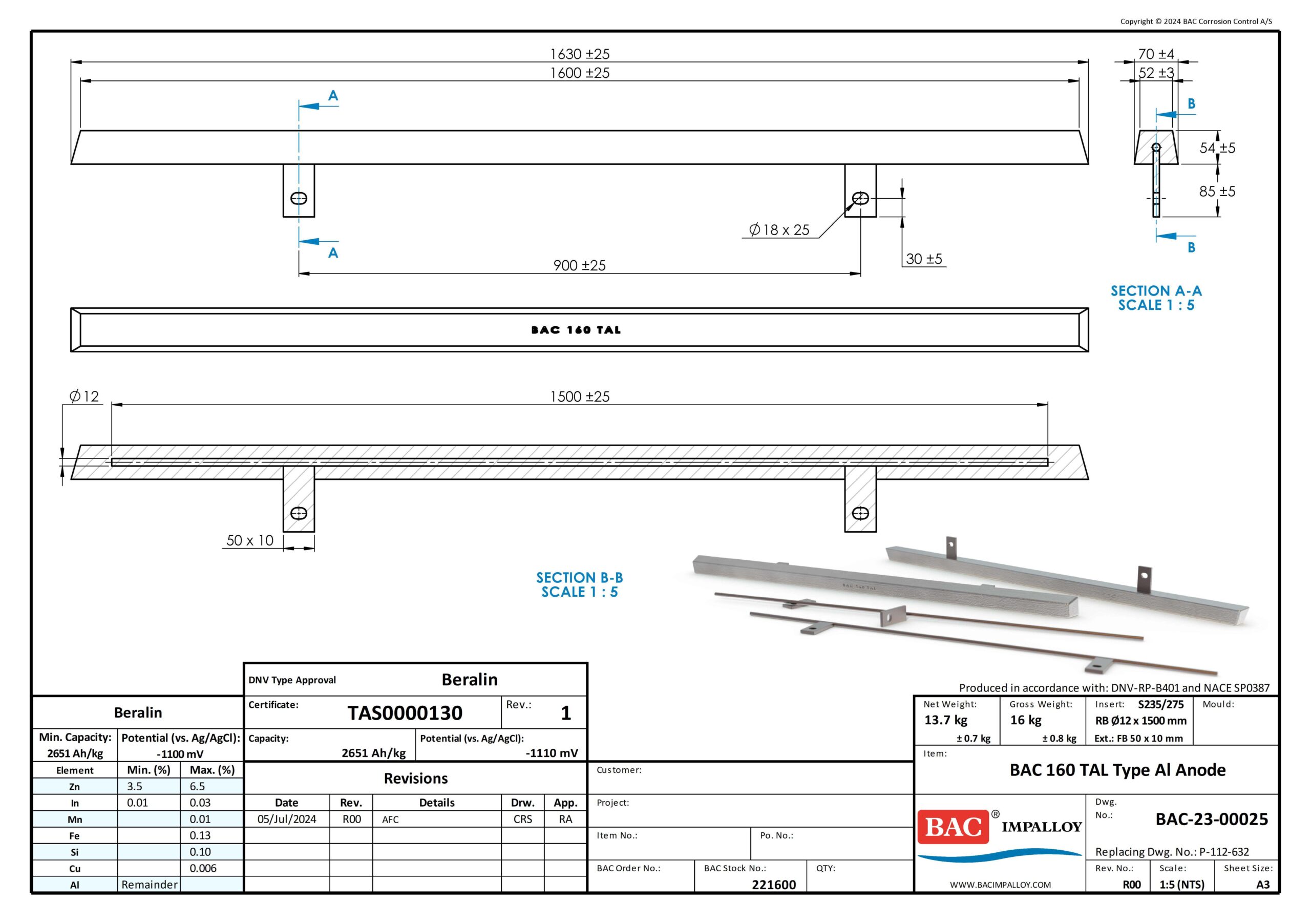

BAC 160 TAL Aluminium 13.7 16 1500 395

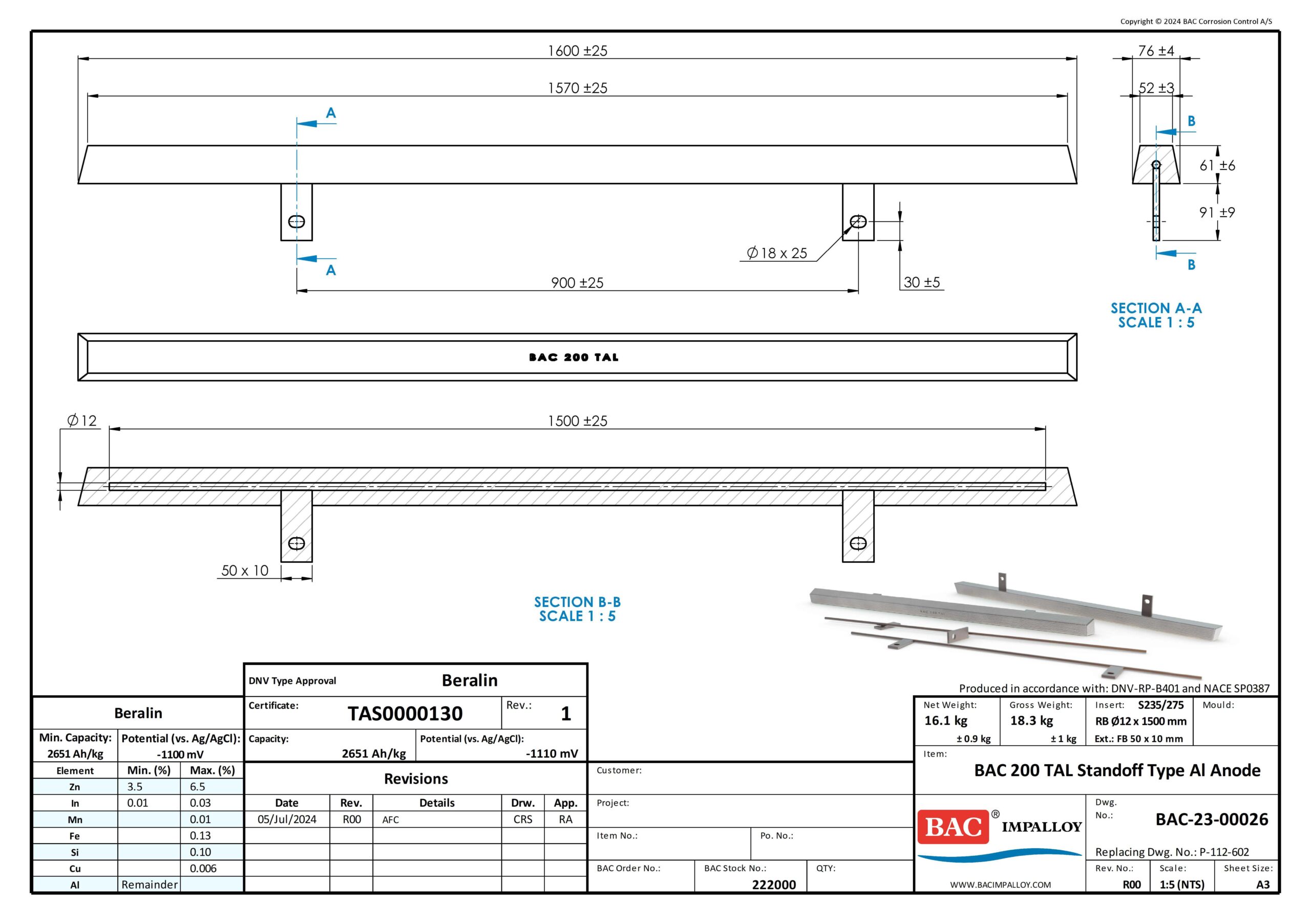

BAC 200 TAL Aluminium 16.1 18.3 1500 378.5

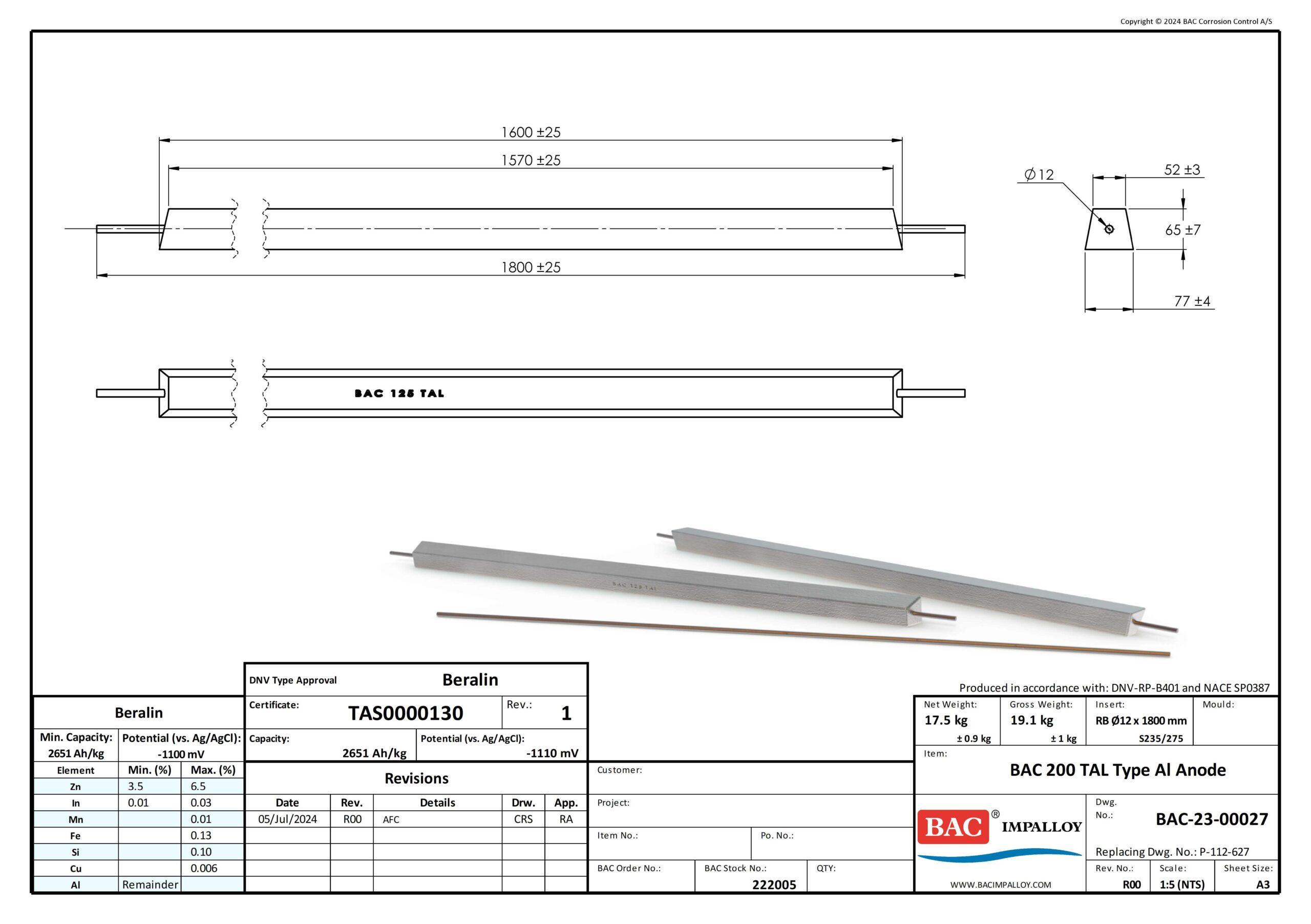

BAC 200 TAL Aluminium 17.5 19.1 1800 378.5
BAC 230 TAL Aluminium 20.4 23 2000 153.5

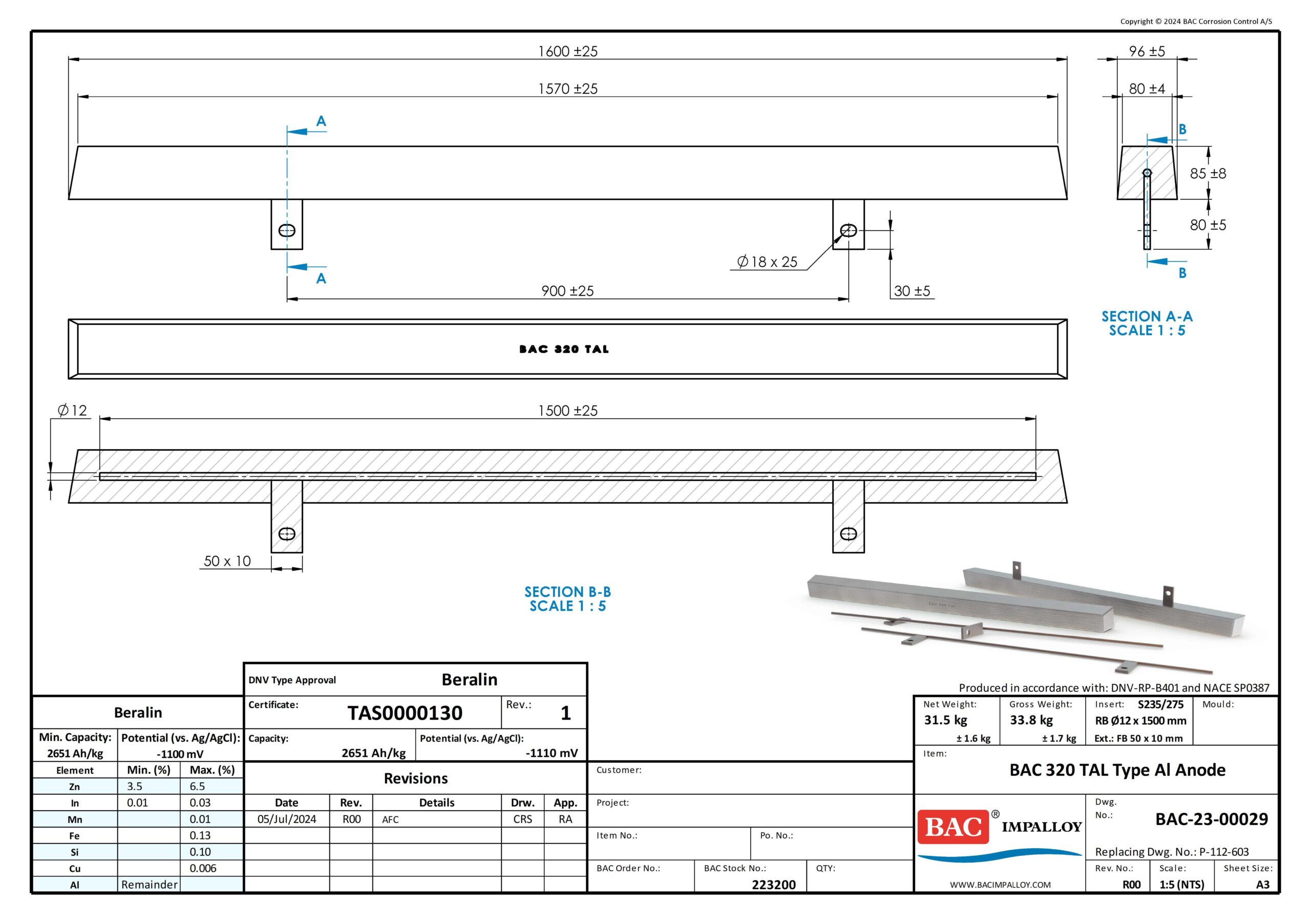

BAC 320 TAL Aluminium 31.5 33.8 1500 378.5

— Zinc
Type Material Net Weight (kg) Gross Weight (kg) Insert Length (mm) Anode Length (mm)
BAC 50 T Zinc 4.7 5 330 395
BAC 50 T C3 Zinc 4.3 6 330 390
BAC 50 T C4 Zinc 4.3 6 330 390
BAC 100 T C3 Zinc 8.3 10 330 390
BAC 100 T C4 Zinc 8.3 10 330 390
BAC 105 T Zinc 9.4 10 330 390
BAC 140 T Zinc 12.8 14 1360 1230
BAC 140 T C3 Zinc 12 14 650 690
BAC 140 T C4 Zinc 12 14 650 690
BAC 220 T Zinc 20.2 22 1135 177.5
BAC 225 T Zinc 20.3 22.5 1415 1235
BAC 235 T C3 Zinc 21.5 23.5 650 745
BAC 235 T C4 Zinc 21.5 23.5 650 745
BAC 300 T Zinc 28.2 30 1135 182.5
BAC 305 T Zinc 28.3 30 1415 1235
BAC 450 T Zinc 42.7 45 1500 378.5
BAC 500 T Zinc 48.1 50 1500 378.5
BAC 570 T Zinc 55 57 1500 378.5
