Shaft Anodes

Explore our standard range of Shaft Anodes. Contact us for more details or custom requests.

Click on the anode type to view the drawing and full specifications.

— Shaft Anodes
Type Material Net Weight (kg) Gross Weight (kg) Anode Height (mm)
Ø44 / Ø19 Zinc 0.19 0.2 25

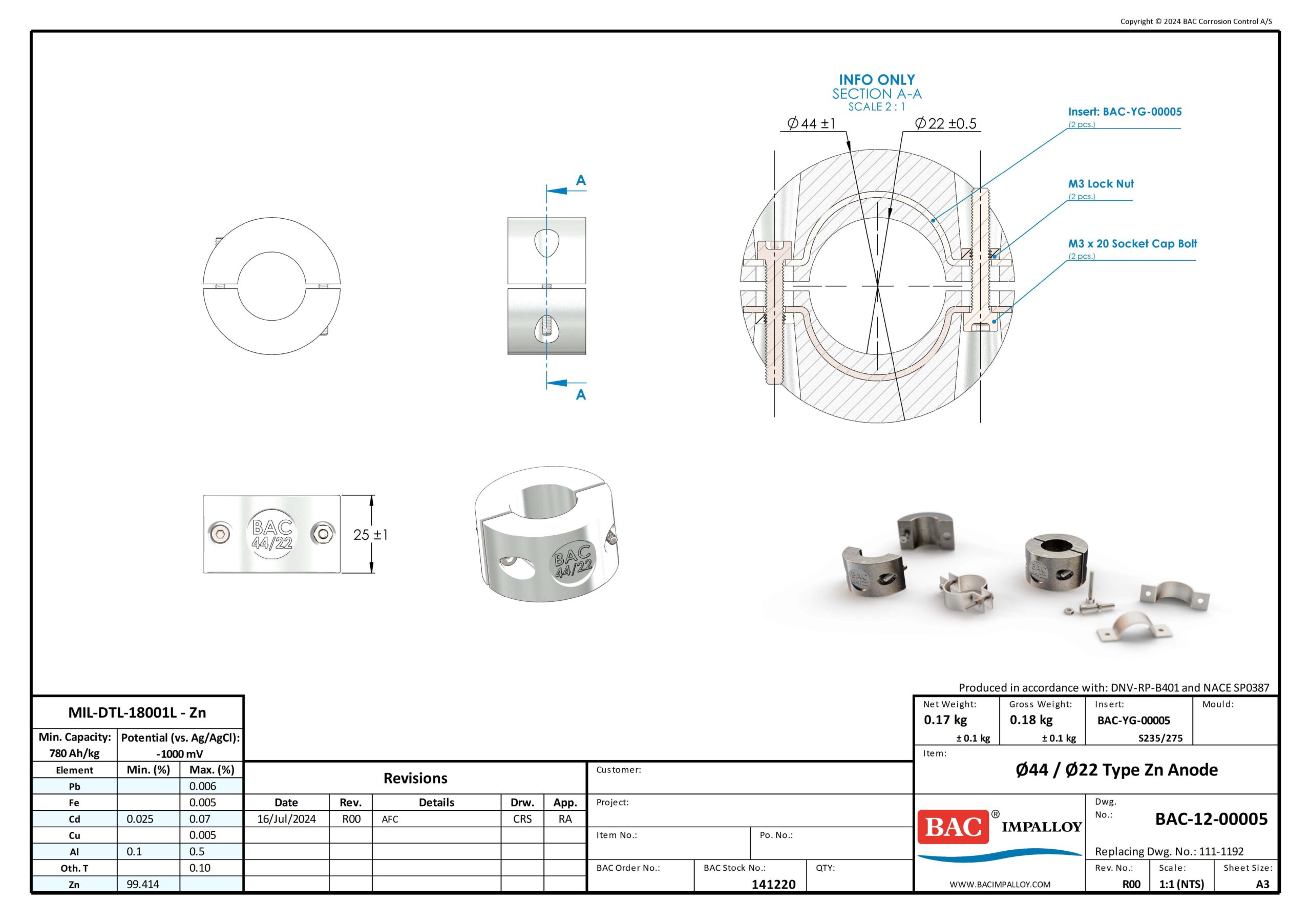

Ø44 / Ø22 Zinc 0.17 0.18 25
Ø44 / Ø25 Zinc 0.15 0.16 25

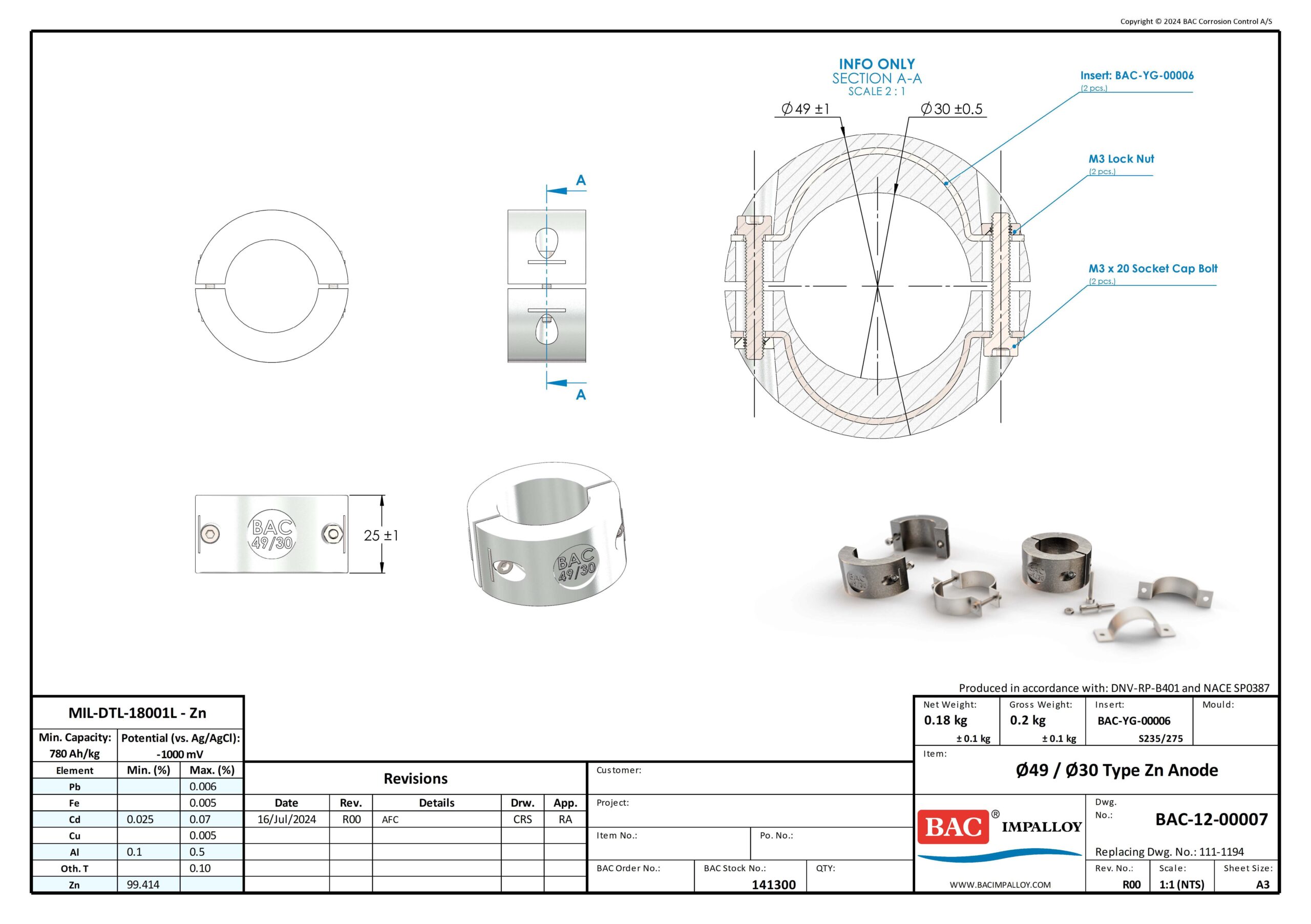

Ø49 / Ø30 Zinc 0.18 0.2 25
Ø55 / Ø19 Zinc 0.73 0.86 65
Ø55 / Ø22 Zinc 0.7 0.83 65
Ø55 / Ø25 Zinc 0.65 0.7 65

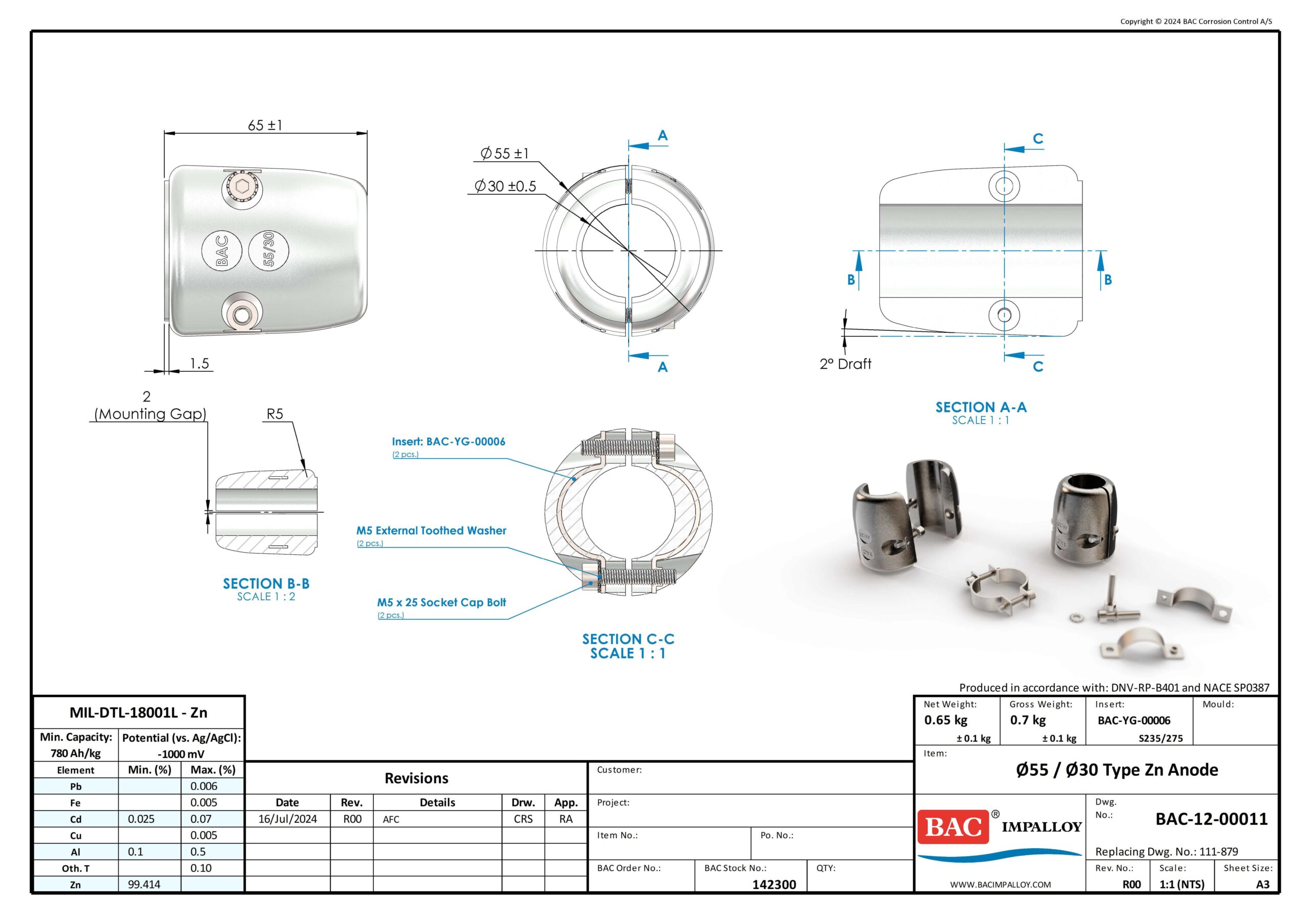

Ø55 / Ø30 Zinc 0.65 0.7 65

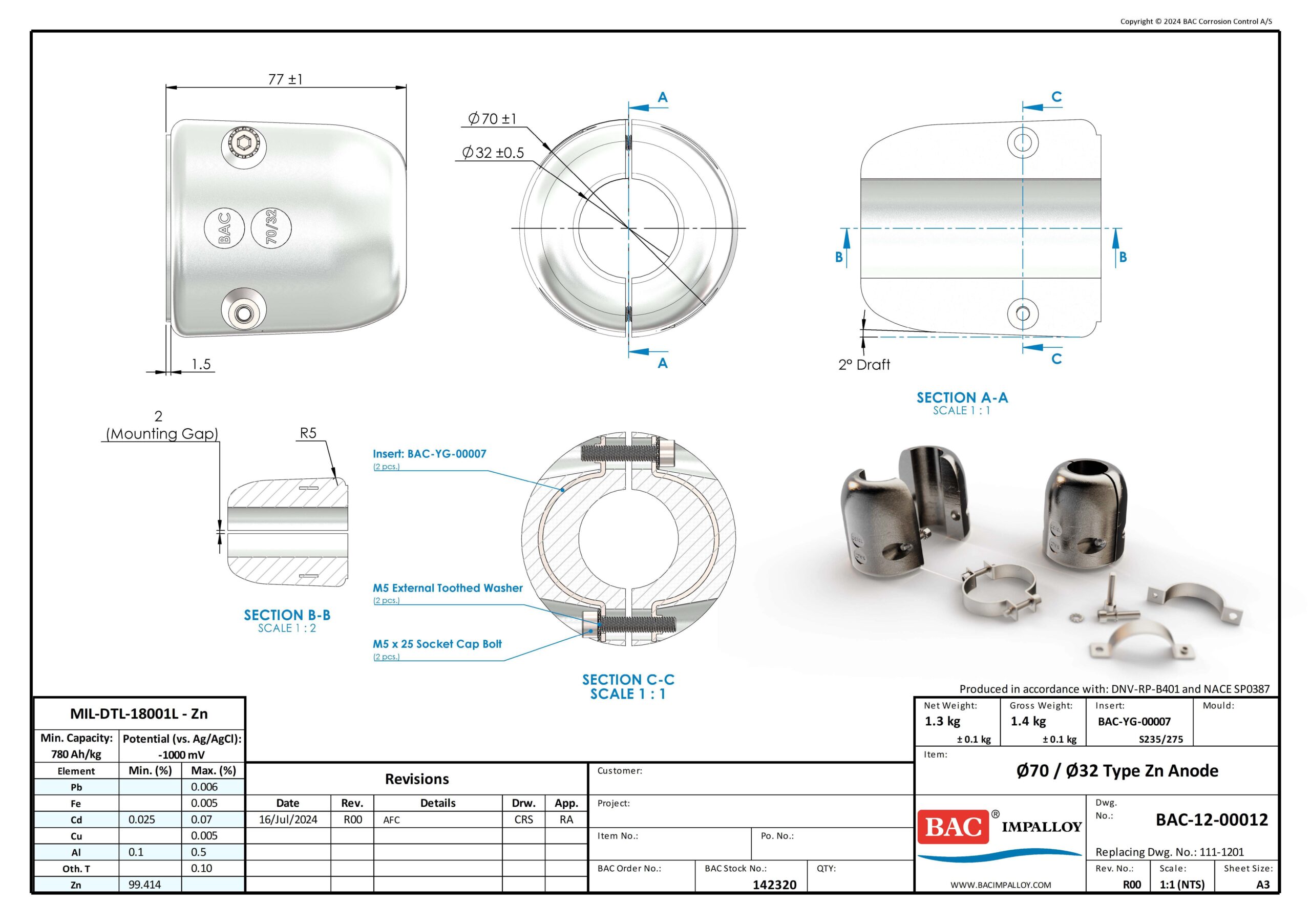

Ø70 / Ø32 Zinc 1.3 1.4 77

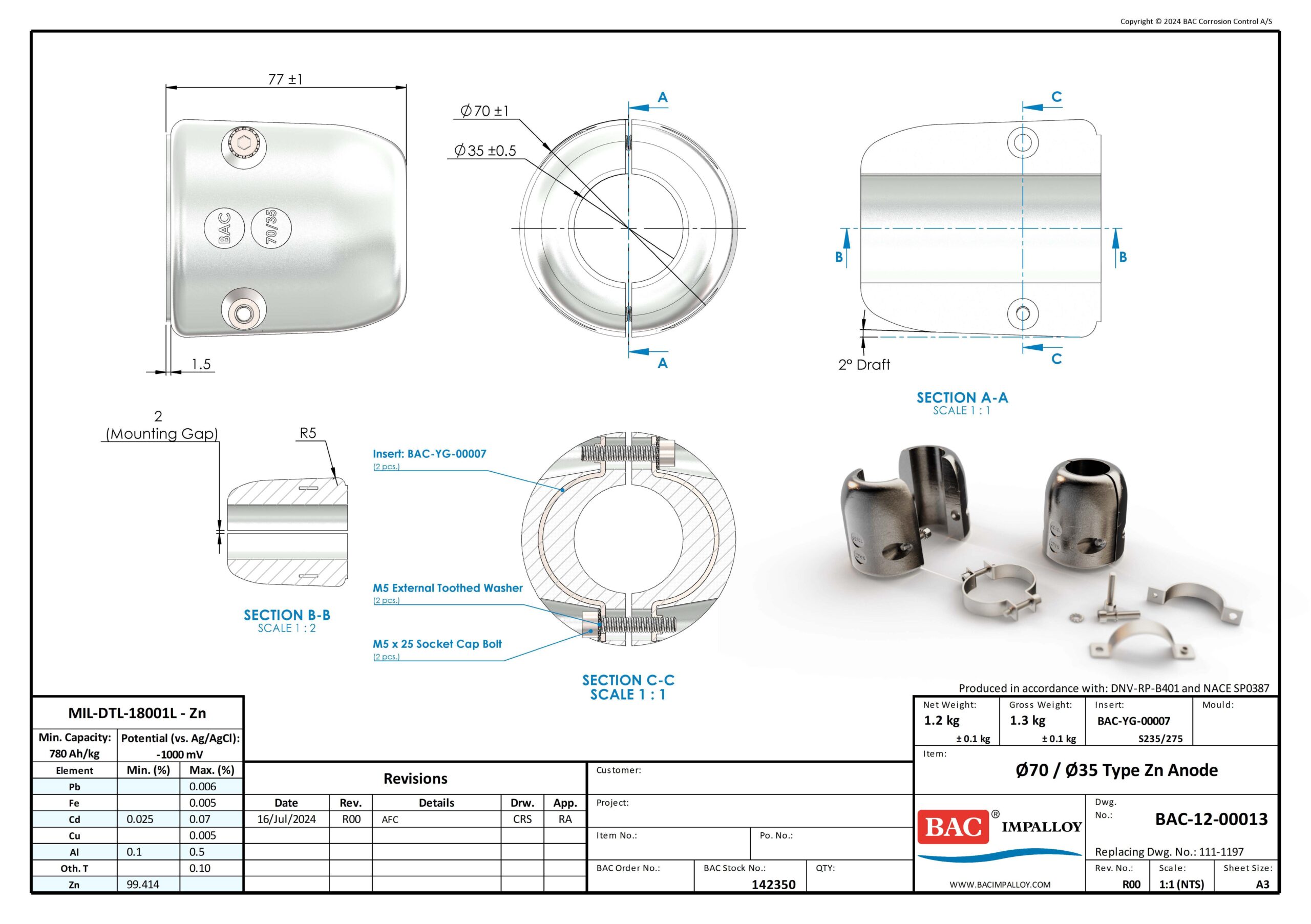

Ø70 / Ø35 Zinc 1.2 1.3 77
Ø70 / Ø38 Zinc 1.1 1.2 77

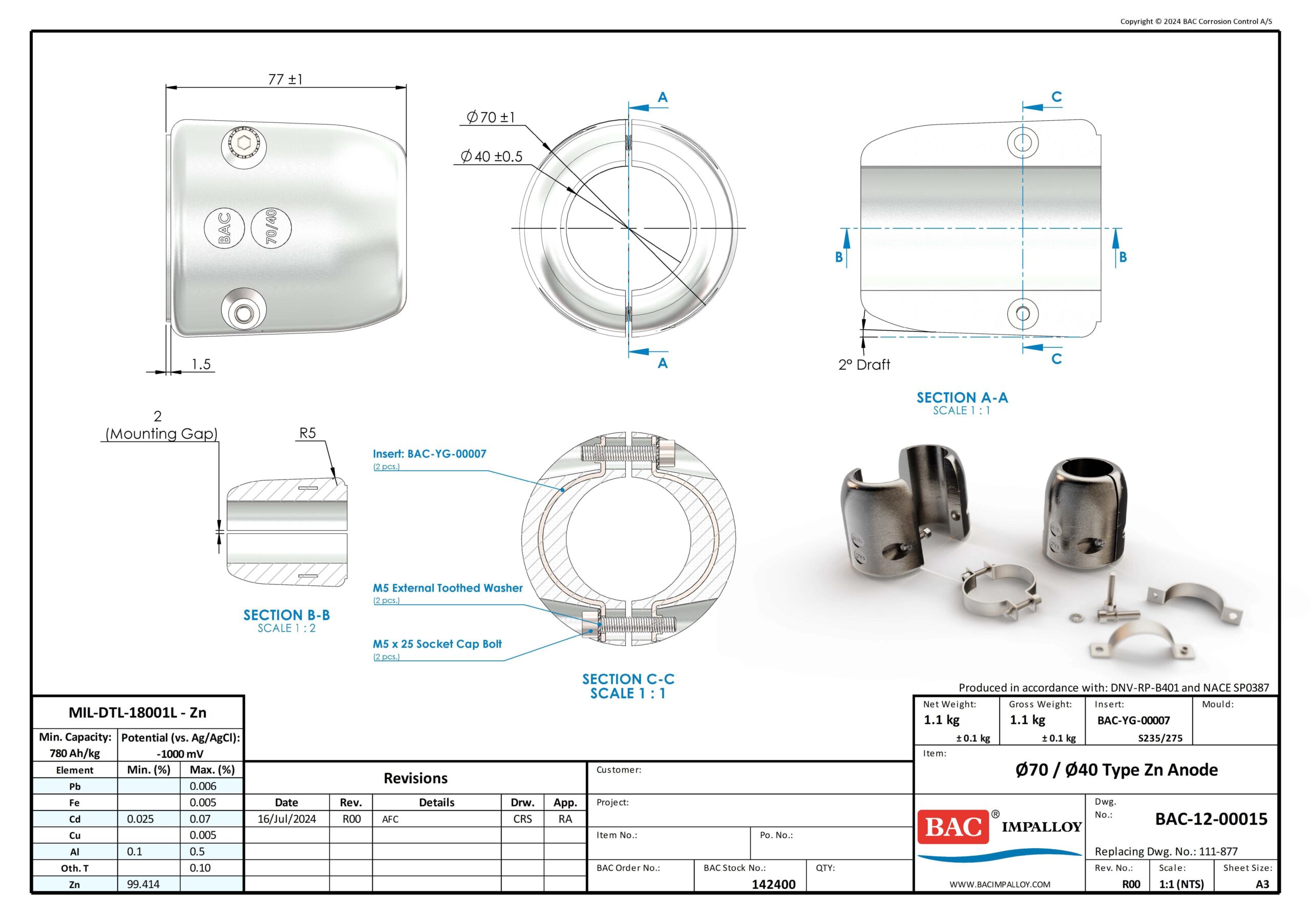

Ø70 / Ø40 Zinc 1.1 1.2 77
Ø85 / Ø45 Zinc 2.6 2.8 100

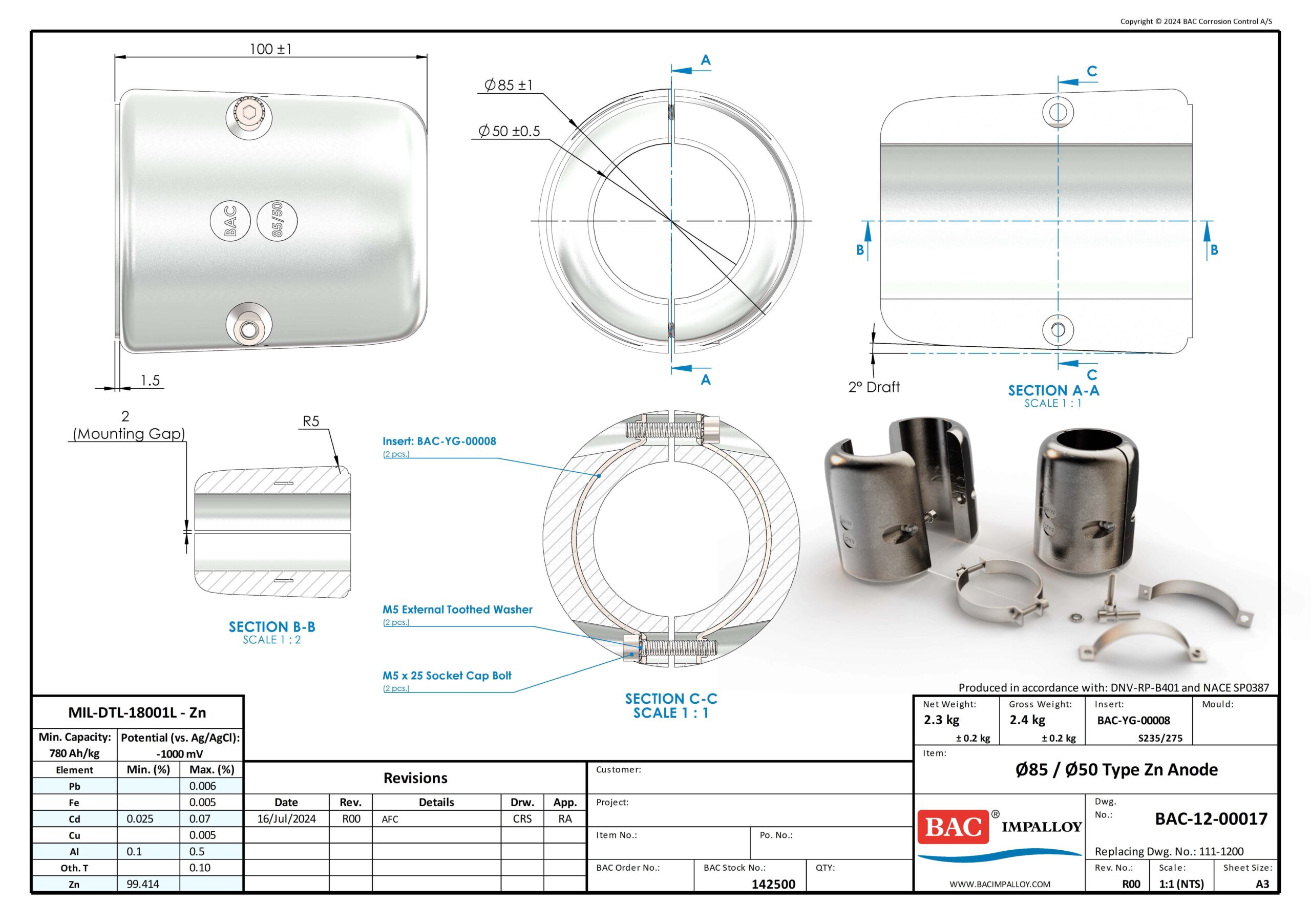

Ø85 / Ø50 Zinc 2.3 2.4 100

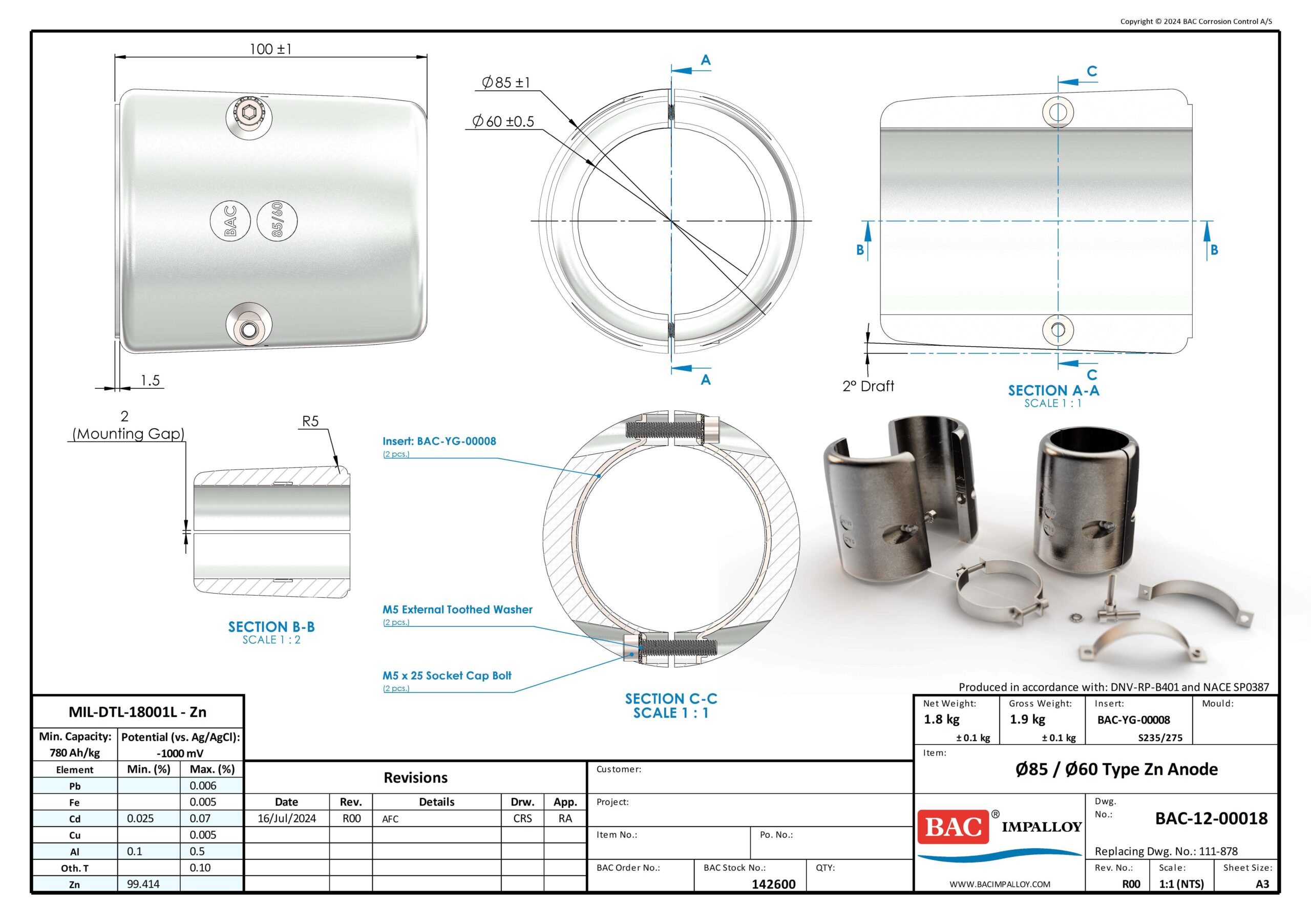

Ø85 / Ø60 Zinc 1.8 1.9 100

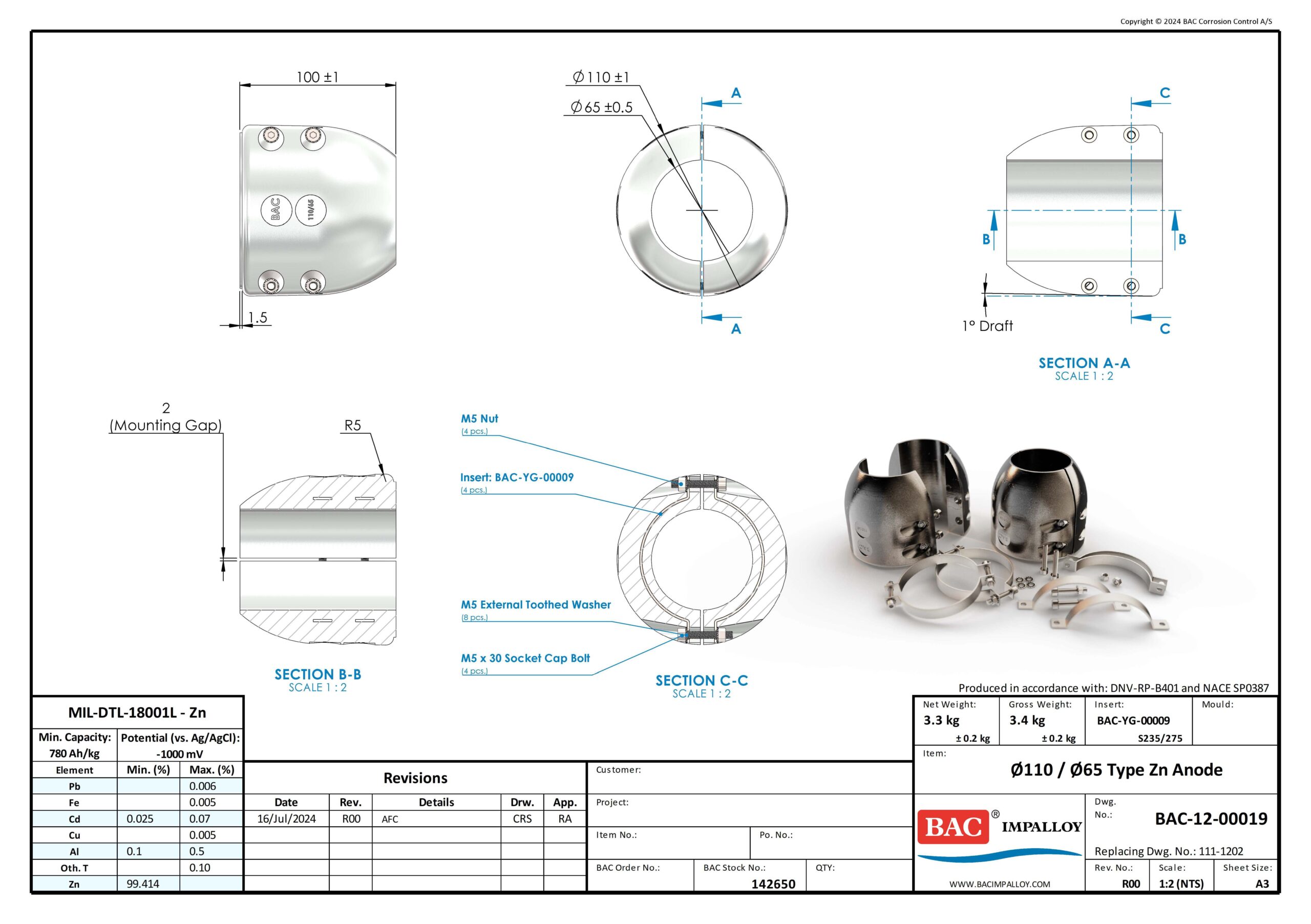

Ø110 / Ø65 Zinc 3.3 3.4 100
Ø110 / Ø70 Zinc 3 3.1 100
